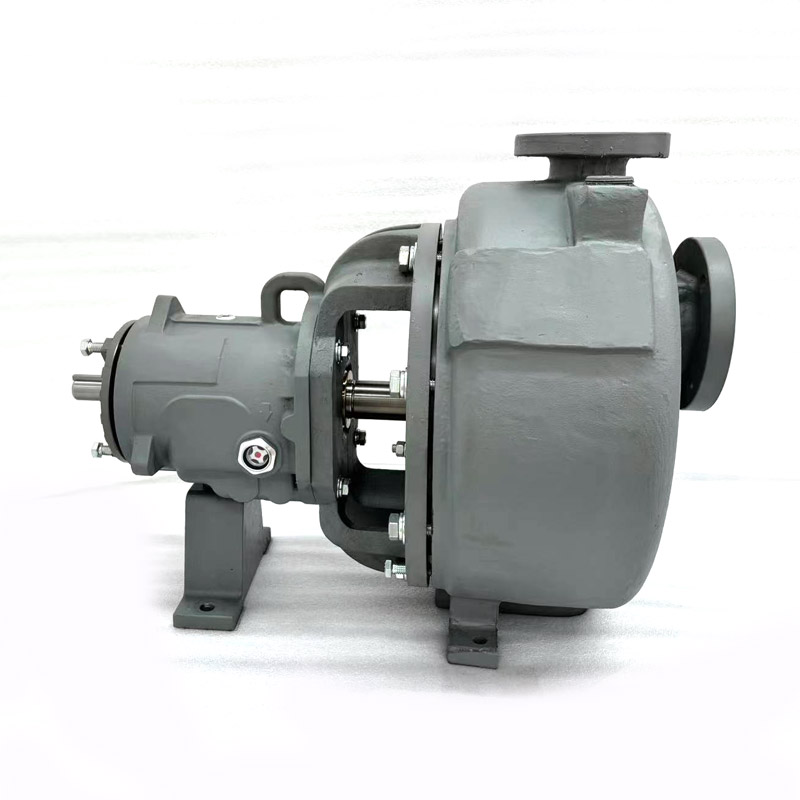

Durco Mark 3 ユニット化自吸ポンプ

Furkey Durco Mark 3 Unitized Self-Priming Pump is specifically designed to pump liquids from positions lower than the pump inlet or from liquid sources that cannot be filled by self-flow.   Its core feature lies in the built-in efficient self-priming design.   Without manual intervention or additional auxiliary equipment, it can quickly lift the liquid below the pump position and complete the pump filling, achieving rapid start-up and reliable operation.

This Durco Mark 3 Unitized Self-Priming Centrifugal Pump is widely applied in industrial scenarios where liquids need to be extracted from low, non-sealed or pressure-free sources.   It is especially for extracting liquid from underground storage tanks, liquid collection pits, open containers, or for mobile loading and unloading, equipment cleaning, emergency drainage and other operation links that require convenient, reliable and intermittent operation.

Furkey is a professional China Durco Mark 3 Unitized Self-Priming ANSI Pump manufacturer, supplier and exporter. Adhering to the pursuit of perfect quality of products, so that our Chemical Process Pump have been satisfied by many customers. Extreme design, quality raw materials, high performance and competitive price are what every customer wants, and that's also what we can offer you. Of course, also essential is our perfect after-sales service. If you are interested in our services, you can contact us now, we will reply to you in time!

Features and benefits

Unitized casing has large priming chamber, air separator and volute in one integral component. This design eliminates the need for a separate priming tank.

Standard reverse vane impeller is the only impeller design that offers repeatable pump performance throughout the life of the pump. Open impellers available.

External micrometer accurately sets impeller clearance in 20 seconds, whether in the shop or in the field.

SealSentry seal chambers extend seal life and provide advanced self-flushing capability.

Back pullout design allows removal of rotating element without removing casing, piping or motor.

Heavy-duty pump end and drive end bearings are selected for long life and reliability.

Operating parameters

Parameter	Performance Range
Flows	To 320 m³/h (1,400 gpm)
Heads	To 120 m (400 ft)
Pressures	To 20 bar (285 psi)
Temperatures	To 370°C (700°F)
Static Suction Lift	To 6 m (20 ft)
